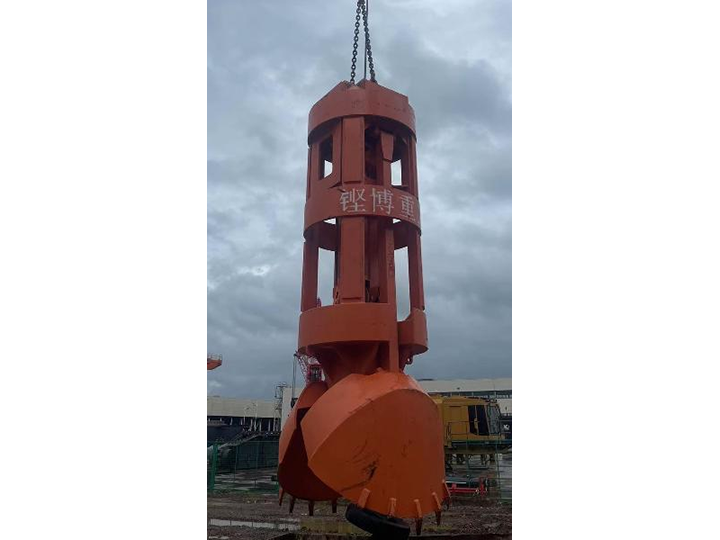

Double rope grab
Double rope grab
Double rope grab plan
Double rope grab

Double rope grab

    Application scope: Suitable for use with double rope cranes in full casing, grabbing sand, stones, ores, mineral powders, etc. with a specific gravity of 0.6-3.2t and various particle sizes.
Product Details

Application scope

Suitable for use with double rope cranes in full casing, grabbing sand, stones, ores, mineral powders, etc. with a specific gravity of 0.6-3.2t and various particle sizes.

Technical parameter

Sleeve model (mm) Model KB Length L Width B1 Weight KG Steel wire rope diameter/length m
2000/1880 KB200 6000 1830 15000 Ø32/20
2200/2080 KB220 6200 2030 17000 Ø32/20
2500/2380 KB250 6600 2330 18000 Ø36/20
2800/2660 KB280 6800 2610 19500 Ø36/20
3000/2860 KB300 7000 2810 20800 Ø42/20
3200/3050 KB320 7200 3000 21500 Ø42/20
3500/3350 KB350 7500 3300 22500 Ø42/20
4000/3850 KB400 8000 3800 24500 Ø42/20
